Current Transformer CT-5MRN Series
Expand Input Range for Use with Meter Relays
(50/60 Hz, 1.0 % class)
The CT-5MRN is a current transformer that expands the input range of Hioki meter relays.

Model No. (Order Code)

CT-5MRN100Primary current 100 A, output 5 VA
CT-5MRN120Primary current 120 A, output 5 VA
CT-5MRN150Primary current 150 A, output 5 VA
NotCE

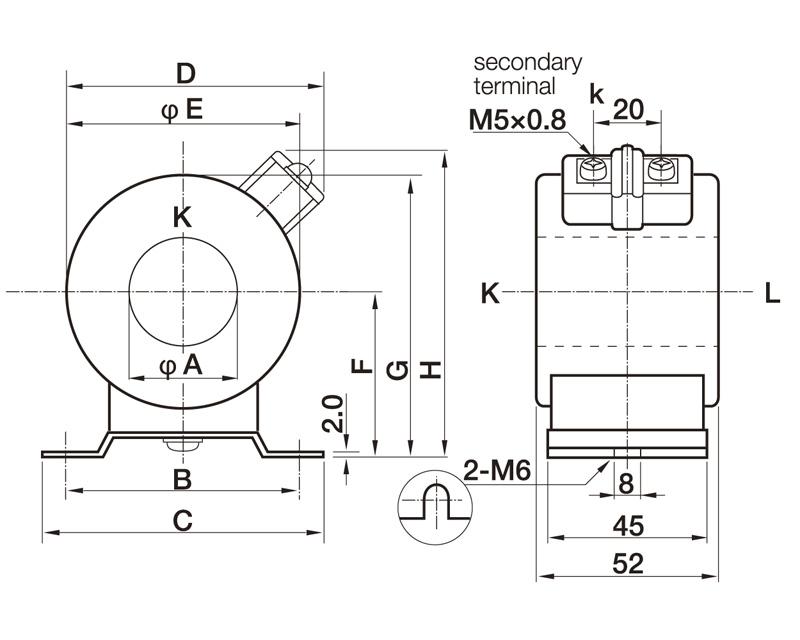

Dimensions (Show the PDF catalog if you print out)

Symbol : φ A B C D
Length : 23 mm (0.91 in) 70 mm (2.76 in) 85 mm (3.35 in) 68 mm (2.68 in)

Symbol : φ E F G H
Length : 60 mm (2.36 in) 45 mm (1.77 in) 75 mm (2.95 in) 83 mm (3.27 in)

Basic specifications

ModelPrimarySecondaryRated loadClassMax. rated voltage
CT-5MRN100100 A5 A5 VA1.0 %1150 V
CT-5MRN120120 A5 A5 VA1.0 %1150 V
CT-5MRN150150 A5 A5 VA1.0 %1150 V
Catalog: CURRENT TRANSFORMER CT-5MRN seriesDownload PDF  [923KB]English
